Verticals / Standard for Ringlock System Scaffolding

In: Ringlock

Verticals / Standard Ringlock is the vertical member of Ringlock scaffolding; they provide vertical support for scaffolding.

Material: Q235/Q345

Diameter: 48.3*3.2mm/48.3*3.25mm

Finished: Hot dip galvanized

viagra on line you could try these out For further information visit us:- / If you can buy Night Fire capsules and Musli Strong capsules from reputed online stores.

Item
 Description Surface Weight
RV910 9’10” (3M) Vertical 6 Ring HDG 15.2 kg
RV82NS 8’2″ (2.5M) Vertical  Ring W/O Spigot HDG 12.7 kg
RV82 8’2″ (2.5M) Vertical  Ring HDG 13.3 kg
RV66NS 6’6″ (2M) Vertical  Ring W/O Spigot HDG 10.2 kg
RV66 6’6″ (2M) Vertical  Ring HDG 9.71 kg
RV411NS 4’11” (1.5M) Vertical  Ring W/O Spigot HDG 7.7 kg
RV411 4’11” (1.5M) Vertical  Ring HDG 7.89 kg
RV33NS 3’3″ (1M) Vertical  Ring W/O Spigot HDG 5.2 kg
RV33 3’3″ (1M) Vertical  Ring HDG 5.41 kg
RV10NS 1’7″ (0.5M) Vertical  Ring W/O Spigot HDG 2.7 kg
RV10 1’7″ (0.5M) Vertical  Ring HDG 3.13 kg

Standard of Ringlock scaffolding

With or without spigot are both available.

Our standards are mechanically welded, and inspected in every process.

The perpendicularity tolerance is within 1%.

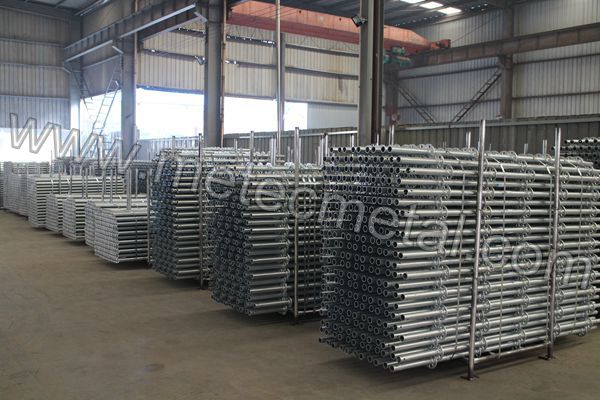

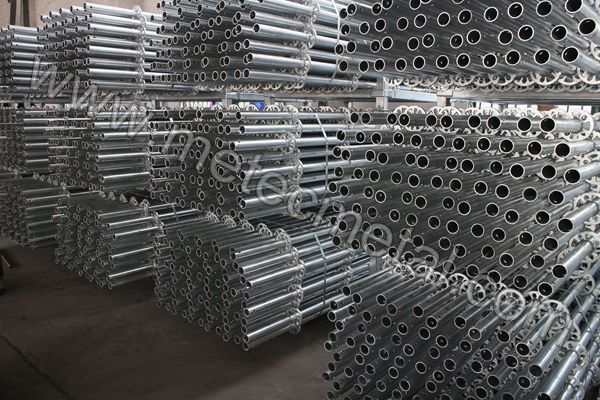

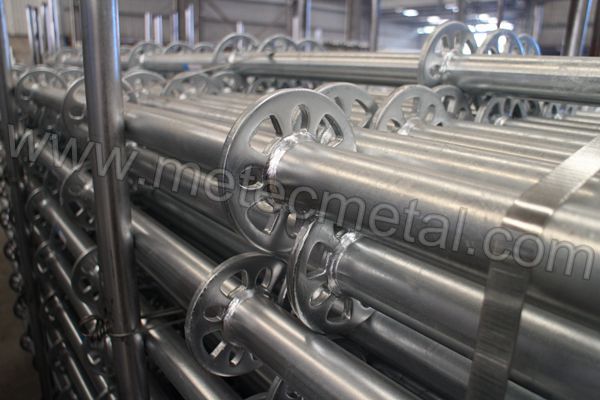

Products Pictures for Ringlock Standard:

Standard for Ringlock Scaffolding

Standard for Ringlock Scaffolding

Standard for Ringlock Scaffolding

Standard of Ringlock Scaffolding

Standard for Ringlock Scaffolding

Ringlock Scaffolding Packing

Ringlock Scaffolding Packing

Components for Ringlock Scaffolding:

* Ringlock Scaffolding System
* Ledger / Horizontal/Runner
* Truss Ledger / Double Ledger
* Diagonal / Bay braces
* Clamp Brace
* Lattice Girder
* Steel Plank
* Side Bracket
* Stair
* Ladder & Bracket
* Mid-Transoms
* Screwjack/ Base Jack



Please click here for Ringlock standard testing.
